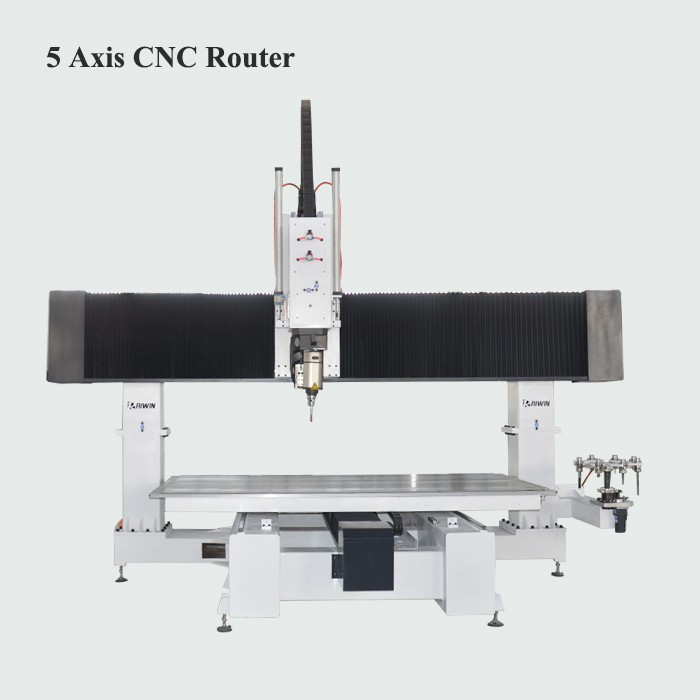

5 axis cnc router machine 1224

5 axis cnc router machine 1224

Machine features:

1. High-Performance Core Configuration
Control System: Syntec 610MA-E5 CNC with RTCP. Features WindowsCE for real-time 3D simulation and fault diagnosis. ISO G-code compatible for 5-axis wood CNC and router projects.
Drive & Motion: Hiteco AC rotary axes + 13.5kW HSK F63 liquid-cooled spindle. Yaskawa servos (XY/Z: 2.9kW) with Delta 15kW inverter. TBI 35mm linear guides, ball screws, moving table for stable wood CNC operation.

2. Robust Structural Design
Frame: Welded steel bed (12mm+) with steel gantry for vibration damping in 5-axis wood routing.
Tool Changer: 8-station carousel for automated tool switching.
Z-Axis: 700mm standard height for large-format wood CNC workpieces.
3. Precision & Stability Features

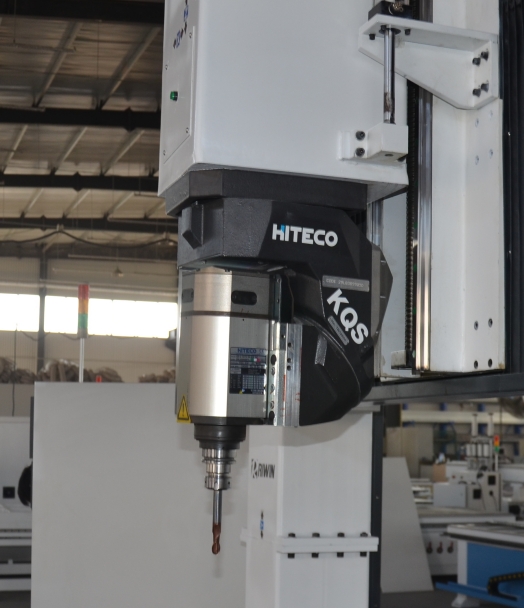

5-Axis Head Options: 90° vertical head for wood/soft metals; 50° tilting head for hard metals (HSK interface).
Compensation: Volumetric 3D laser calibration, linear compensation, fixture placement alignment, and constant tip speed
synchronization.
4. Material Versatility
Materials: Wood, composites, acrylic, plastic, foam, and aluminum. Ideal for large panels, molds, furniture, and 3D surfaces.
5. Operational Efficiency
Dry Transformer: Energy-efficient.
Dual-Table Option: Enables continuous production for small-to-medium workpieces.

Machine advantages:

*The machines'body is strong, rigid, high precision, reliable and durable.

* High precision ball screw, smooth movement, to ensure that the machine tools high precision.

 * High quality square rail 30m-steel strip dust prevenfon.

* Using 12kw automatic tool changer, water cooling, 5Axis spindle, low noise, and strong cutting ability, to ensure the long time working.

* High performance driven motor to ensure that the machines high speed and accuracy

Machine parameters:

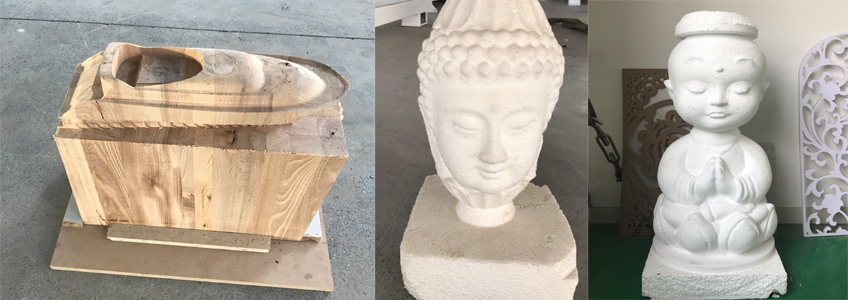

Samples:
